NIU controller installation guide

NIU Scooter Speed Up Instructions

Install and configure a compatible NIU controller upgrade, choose the correct product for your scooter, and troubleshoot the most common installation issues.

Choose your controllerOpen full speed calculator

Choose the correct NIU speed upgrade

Use the dedicated controller or software service for your scooter model. The buttons below go directly to the matching product.

NIU NQI / N1S / N1

Bluetooth-programmable controller for the NIU N-Series. Select your exact scooter model before ordering.

View product

NIU MQI+ / M+ / UQI / U1 / SQI

One programmable controller page covers the supported M-Series, U-Series and SQI configurations.

View product

NIU NQIX 2025 / 2026

Dedicated NQiX controller with a recommended standard setup and heavy-performance options.

View product

NIU FQIX 150

Dedicated FQiX controller for speed unlocking and Bluetooth programming.

View product

NIU NGT / NPRO / NGTS

Use the model-specific software service where the original controller supports the upgrade.

View software service

NIU MQI GT / MGT

Model-specific speed software service for compatible MQI GT and MGT scooters.

View software service

See the installation process

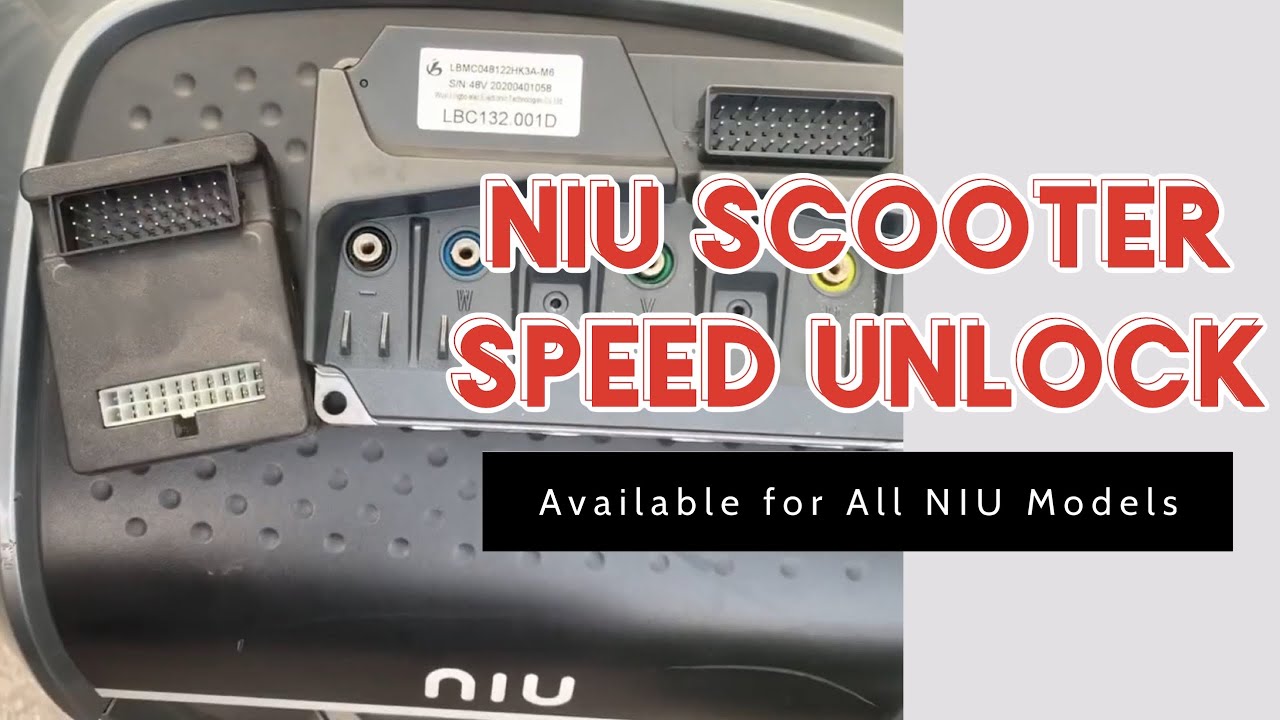

How to speed up your NIU scooterWatch video

Installation steps

Disconnect power. Turn the scooter off and disconnect the battery before opening the trunk.
Remove the trunk. Unscrew the four trunk screws and lift the trunk so the original controller is accessible.
Disconnect the original controller. Remove the power plug, controller plugs and five coloured phase cables. Photograph the original cable positions first.
Install the upgrade controller. Secure the controller and reconnect every plug and phase cable firmly. A larger controller may use two mounting screws instead of all four.
Connect the adapter. Connect the supplied two-headed adapter exactly as shown in the product instructions: the controller side goes to KZQ and the scooter power connection goes to CAR.
Test before closing the trunk. Reconnect the battery, test the dashboard and riding modes, then finish assembly.
NIU N1: the N1 installation also uses the supplied 6-pin Hall adapter.

Interactive NIU speed calculator

Select your scooter and planned upgrades to see an estimated result and the matching products.

NIU and Segway Speed Calculator

Estimated maximum speed

25–45 km/h

These figures are estimates, not guarantees.

Troubleshooting

The READY light appears immediately and the dashboard cannot change modes

Recheck the two-headed adapter. It may be connected in the wrong direction or may have come loose while reinstalling the seat.

The scooter powers on but does not drive normally

The controller parameters may not match the scooter. Stop testing and contact us for the correct model settings.

Error 11 appears

Check the configured battery voltage. This can happen when, for example, a 48V scooter is configured with 60V settings.

The screws are difficult to remove

Use the correct screwdriver bit and avoid excessive force with an electric screwdriver, which can strip the screw head.

Need help? Send your exact scooter model, battery voltage and a photo of the original controller connectors before ordering. Message EScootParts on WhatsApp.
